In any industrial or workplace setting, safety is paramount. With the increasing complexity of machinery and equipment, the risks of accidents and injuries can rise significantly if proper precautions aren't taken. One critical safety measure is the use of lockout devices, which are designed to prevent unexpected machine startups, accidental energy releases, or unauthorized access to potentially hazardous systems.
This comprehensive guide will explore everything you need to know about lockout devices, including their types, functionality, importance, and how to select the right one for specific applications. Whether you're new to lockout/tagout (LOTO) protocols or looking to enhance your safety measures, this guide will provide the insights you need to make informed decisions.
Lockout devices are specialized tools or mechanisms used to isolate energy sources and lock machinery, equipment, or systems in a de-energized state. This ensures that dangerous machinery or equipment cannot be started or re-energized while maintenance or servicing activities are being performed. These devices are a critical component of lockout/tagout (LOTO) procedures, which are mandated by workplace safety regulations in many countries, including OSHA (Occupational Safety and Health Administration) in the United States.
Lockout devices work in conjunction with tags, which are used to communicate critical information about the lockout—such as the reason for the lockout, the personnel responsible, and the expected duration. Together, lockout devices and tags form a robust system for controlling hazardous energy.
The necessity of lockout devices cannot be overstated, particularly in environments where employees interact with hazardous energy. Here's why they are crucial:
Preventing Accidents: According to OSHA, failure to control hazardous energy accounts for nearly 10% of serious workplace accidents. Lockout devices ensure equipment is de-energized, dramatically reducing the risk of injuries caused by accidental startups.
Protecting Workers: Workers performing maintenance on machinery are at significant risk of encountering moving parts, electrical shocks, or unexpected releases of stored energy. Lockout devices act as a safeguard to protect them.
Compliance with Regulations: Many jurisdictions have stringent regulations around energy control procedures. OSHA, for instance, requires employers to implement energy control programs, including the use of lockout devices.
Reducing Downtime: Accidents and injuries can lead to costly downtime. By using effective lockout/tagout systems, businesses can maintain operational efficiency and reduce liability.
Building a Safety Culture: The use of lockout devices fosters a culture of safety within the workplace, emphasizing the importance of worker protection and compliance with safety standards.
Lockout devices function by physically restricting access to an energy source or by immobilizing critical components of machinery. Here's a step-by-step explanation of how they work:
Identify the Energy Source: The first step is to identify energy sources such as electrical, hydraulic, pneumatic, or mechanical systems that need to be isolated.
Isolate the Energy Source: The energy source is deactivated by turning off power switches, closing valves, or releasing stored energy.
Apply the Lockout Device: A lockout device is then secured to prevent the energy source from being reactivated. For example, a circuit breaker lockout prevents the breaker from being turned back on.

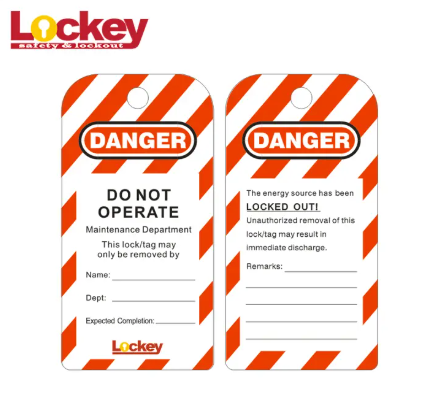

Attach a Tag: A tag is attached to communicate relevant information about the lockout.
Verify Isolation: Before proceeding with maintenance, workers verify that the energy source is completely isolated.
Perform Maintenance Safely: With the lockout device in place, workers can perform maintenance or servicing without risk of unexpected energy release.
Remove the Lockout Device: Once the work is complete, the lockout device is removed, and the equipment is re-energized following proper protocols.
Lockout devices come in various forms, each designed to address specific energy control needs. Below are the primary types of lockout devices:

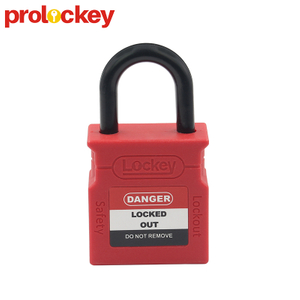

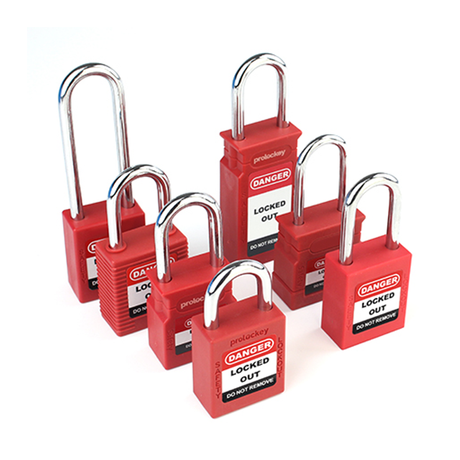

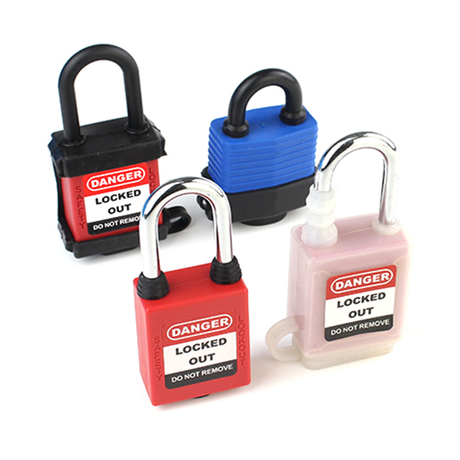

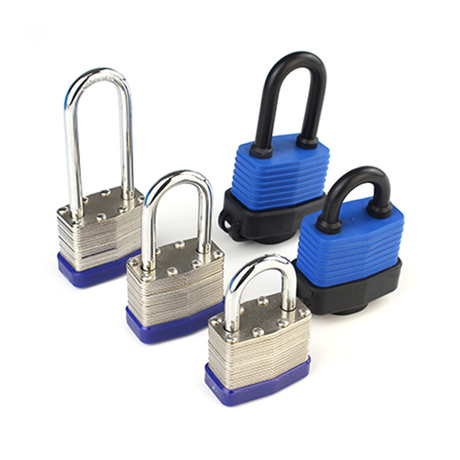

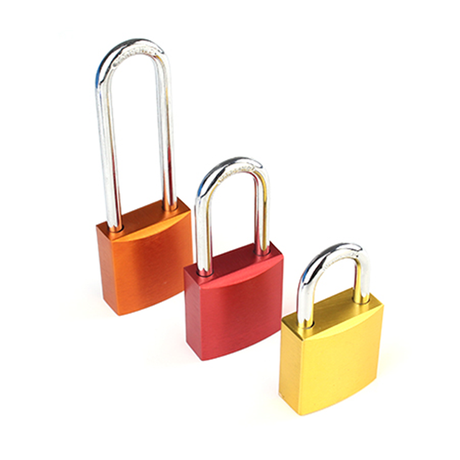

Lockout padlocks are the most commonly used lockout devices. They are durable, tamper-proof, and available in different materials (such as steel or non-conductive plastic) to suit different environments. These padlocks typically feature a unique key to ensure that only authorized personnel can remove them.

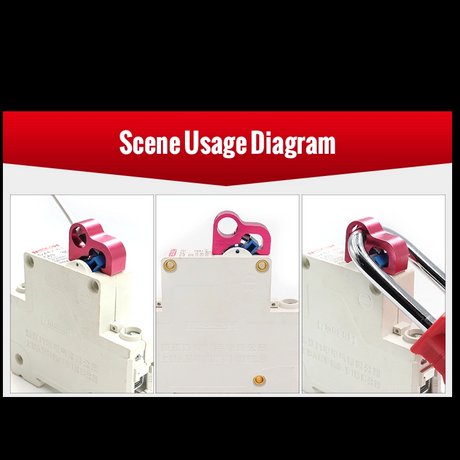

Circuit breaker lockouts are designed to secure circuit breakers in the "off" position, preventing the accidental re-energization of electrical systems. They are available in models compatible with various breaker types, including single-pole, multi-pole, and oversized breakers.
Valve lockouts are used to isolate energy sources that involve pressurized fluids or gas. They come in different designs to fit specific valve types, such as ball valves, gate valves, and butterfly valves.

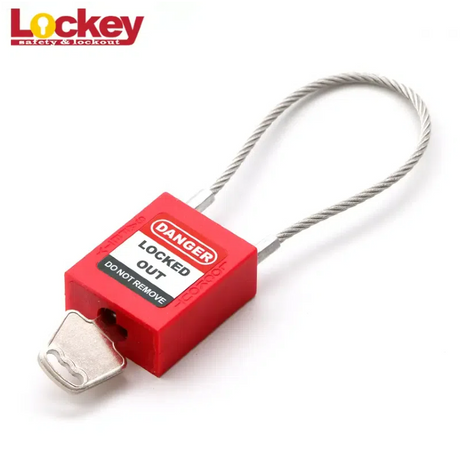

Cable lockouts are versatile devices that use flexible cables to secure multiple energy isolation points simultaneously. They are ideal for locking out valves, gate handles, or other irregularly shaped devices.
Steering wheel lockouts are used in vehicle maintenance environments to immobilize a vehicle's steering wheel, ensuring it cannot be driven or moved during servicing.
Flange lockouts are designed to isolate piping systems by securing flanges, preventing the flow of hazardous fluids or gases during maintenance.
Gas cylinder lockouts are used to secure the valves of gas cylinders, ensuring that hazardous gases cannot be released accidentally.
Pneumatic lockouts are used in systems powered by compressed air. These devices isolate pneumatic energy by blocking the air supply to the equipment.
Lockout hasps enable multiple workers to lock out a single energy source simultaneously. Each worker applies their own padlock to the hasp, ensuring that the equipment cannot be re-energized until all locks are removed.
Selecting the appropriate lockout device depends on several factors, including the type of energy source, the environment, and regulatory requirements. Below are some key considerations:
For single-pole breakers, use compact circuit breaker lockouts.
For multi-pole breakers, select lockouts designed to secure multiple switches simultaneously.
For oversized or specialized breakers, choose adjustable circuit breaker lockouts.
For low-voltage systems, ensure the lockout device is compact and easy to install.
For high-voltage systems, use lockout devices that provide adequate insulation and withstand environmental stress.
In corrosive environments, opt for lockout devices made from non-corrosive materials like stainless steel or durable plastic.
In electrically sensitive areas, use non-conductive materials to prevent accidental electrical conduction.
For outdoor applications, choose weatherproof lockout devices to ensure durability.
Lockout devices are essential tools for maintaining workplace safety and compliance. By isolating energy sources and preventing accidental equipment startups, they minimize the risk of injuries, protect workers, and ensure smooth maintenance procedures. With a wide range of lockout devices available, it's critical to choose the right device based on the energy source, environment, and application requirements.
As industries continue to evolve, the importance of robust lockout/tagout systems will only grow. By investing in quality lockout devices and fostering a culture of safety, organizations can protect their workers and ensure compliance with safety standards.
Q1: What is a lockout device?
A lockout device is a tool used to isolate energy sources and prevent machinery or equipment from being re-energized during maintenance.
Q2: What are the key types of lockout devices?
Key types include lockout padlocks, circuit breaker lockouts, valve lockouts, cable lockouts, and pneumatic lockouts.
Q3: Why are lockout devices important?
They are critical for preventing workplace injuries, ensuring compliance with safety regulations, and protecting workers from hazardous energy.
Q4: How do I choose the right lockout device?
Consider the type of energy source, the environment, and the specific application requirements when selecting a lockout device.
Q5: What is the difference between a lockout and a tagout?
A lockout involves using a physical device to isolate energy sources, while a tagout uses tags to communicate safety information. Both are often used together for maximum safety.
