In industrial and manufacturing environments, safety isn't just a priority—it's a necessity. One of the most effective systems developed to protect workers from hazardous energy during maintenance and servicing of machinery is the lockout tagout device system, commonly known as LOTO. This system ensures that dangerous machines are properly shut off and not started up again before the completion of maintenance or servicing work.
With the increasing emphasis on workplace safety and regulatory compliance, understanding the types of LOTO devices available and their proper application is critical. In this article, we will discuss in-depth what lockout tagout devices are, explore OSHA's requirements for these devices, and provide a comprehensive breakdown of the different types of LOTO devices available today. This guide will help professionals make informed decisions about selecting the right equipment to ensure compliance and safety.
A lockout tagout device is a physical mechanism used to isolate energy sources and prevent accidental startup of machinery or equipment during maintenance activities. These devices are integral to the LOTO procedure, which involves placing locks and tags on energy-isolating devices to indicate that the equipment should not be operated until the lock and tag are removed.
The LOTO device system is designed to control all forms of hazardous energy, including electrical, mechanical, hydraulic, pneumatic, chemical, and thermal. By using appropriate LOTO devices, organizations can significantly reduce the risk of injury caused by unexpected equipment activation.
LOTO devices are not limited to simple padlocks. A wide variety of tools and mechanisms are available, each designed for specific types of equipment and energy sources. From valve lockouts to circuit breaker locks, the right lockout tagout device can make all the difference in workplace safety and regulatory compliance.
The Occupational Safety and Health Administration (OSHA) sets strict regulations concerning the use of lockout tagout devices. According to OSHA standard 29 CFR 1910.147, employers are required to establish a program and utilize LOTO devices to control hazardous energy during maintenance and servicing of machinery.
Key OSHA requirements for tagout devices include:
Durability: Tags must be capable of withstanding the environmental conditions in which they will be used.
Standardization: Tags must be standardized according to color, shape, or size.
Substantiality: Tags must be substantial enough to prevent removal without excessive force.
Identifiability: Tags must clearly identify the employee applying the lockout device.
Effectiveness: Tagout devices must provide the same level of safety as a physical lockout whenever possible.
OSHA emphasizes that lockout is preferred over tagout, and tagout devices may only be used when a lock cannot be applied. This means that selecting the correct LOTO device is not just a best practice—it's a legal requirement.
Understanding the different types of lockout tagout devices is crucial for creating a comprehensive energy control program. Below is a detailed breakdown of the most common and effective LOTO devices used in industrial and commercial settings.
Lockout locks are the cornerstone of any LOTO device system. These are heavy-duty padlocks specifically designed for industrial safety applications. Unlike standard padlocks, lockout locks are often:
Non-conductive
Color-coded for easy identification
Keyed differently to ensure that each worker has a unique key
| Feature | Description |
|---|---|
| Material | Steel, aluminum, or thermoplastic |
| Keying Options | Keyed Different, Keyed Alike, Master Key |
| Shackle Types | Standard, Long, or Flexible |
Lockout locks are used in conjunction with other LOTO devices to secure energy isolation points.
LOTO tags are essential for communicating the purpose and authority behind a lockout. These tags are attached to the lockout tagout device and provide clear, visible information, such as:
The name of the employee who applied the lock
The date and time of application
Warnings against removing the tag
| Requirement | Description |
|---|---|
| Visibility | Must be readable from a distance |
| Language | Must use standardized warning language |
| Tamper Resistance | Must resist accidental or intentional removal |
LOTO tags play a supporting role in the LOTO device system, enhancing safety communication.
Lockout hasps are used when multiple workers are involved in a lockout procedure. A hasp allows several padlocks to be attached to a single isolation point, ensuring that each worker maintains control over the energy source.
Allows group lockout
Prevents accidental removal
Enhances team safety
| Material | Properties |
|---|---|
| Steel | Durable, corrosion-resistant |
| Aluminum | Lightweight and non-sparking |
| Nylon | Non-conductive, ideal for electrical |
Circuit breaker lockouts are used to secure electrical circuit breakers in the OFF position. These LOTO devices are essential for working on electrical panels and systems.
| Type | Application |
|---|---|
| Clamp-on | Universal, fits most breaker types |
| Snap-on | Designed for specific breaker models |
| Tie-bar | Used with multi-pole breakers |
Circuit breaker locks are a must-have for any electrical safety program.
Cable lockouts are versatile LOTO devices used to secure multiple energy isolation points with a single device. These systems use a flexible cable that can be looped through several lockout points, then locked in place with a padlock.
Multiple valve handles
Electrical disconnects
Gate valves
| Material | Use Case |
|---|---|
| Steel | High strength and durability |
| Nylon | Flexibility and non-conductivity |
Cable lockouts offer flexibility and are ideal for complex systems.
A group lockout box is used in large-scale operations where numerous workers and multiple energy sources are involved. The main key to the lockout is placed inside the box, and each worker places their lock on the box itself.
Centralized control
Ensures all workers are accounted for
Minimizes the number of locks on equipment
| Feature | Benefit |
|---|---|
| Transparent Lid | Visual confirmation of contents |
| Multiple Hasps | Supports large teams |
| Wall-Mountable | Easy access and storage |
Valve lockouts are specialized LOTO devices used to secure mechanical valves in either the open or closed position. There are several types of valve lockouts depending on the valve type.
| Type | Application |
|---|---|
| Gate Valve | Round handwheel valves |
| Ball Valve | Lever-operated valves |
| Butterfly Valve | Large-diameter valves |
These devices are critical in industries where fluid or gas flow needs to be tightly controlled.
Plug lockouts are used to secure electrical plugs for portable machinery and equipment. These LOTO devices prevent the plug from being inserted into an outlet, thereby cutting off power.
Fits a range of plug sizes
Made from non-conductive materials
Easy to install and remove
Plug lockouts are essential in industries using portable or temporary electrical equipment.

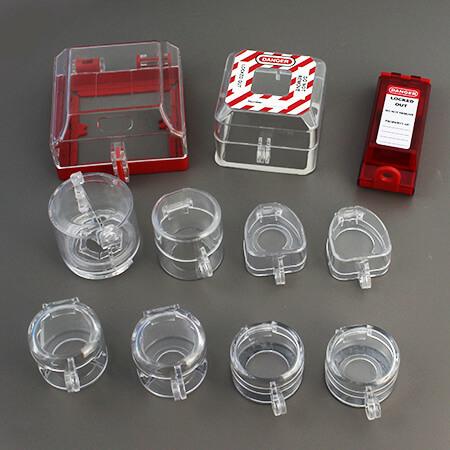

Push button lockouts are used to prevent operation of control panels and start/stop buttons. These LOTO devices cover the button to stop accidental or unauthorized activation.
Control panels
Emergency stop buttons
Start switches
These are highly effective in preventing equipment from being turned on during maintenance.
The proper use of lockout tagout devices is not just a regulatory requirement—it is a vital part of any workplace safety program. With a wide range of LOTO device options available, from lockout locks to circuit breaker locks and valve lockouts, organizations must take the time to understand which tools best fit their operational needs.
Choosing the right LOTO device involves evaluating the energy source, the number of personnel involved, the type of equipment, and regulatory requirements. By doing so, companies not only protect their workers but also ensure compliance with OSHA standards.
In today's fast-paced industrial landscape, the importance of a comprehensive lockout tagout device program cannot be overstated. As technologies evolve and machinery becomes more complex, the demand for innovative, reliable, and effective LOTO devices will only grow.
Q1: What is a lockout tagout device?
A lockout tagout device is a safety tool used to isolate energy sources and prevent accidental machinery startup during maintenance or servicing.
Q2: Are LOTO devices mandatory under OSHA?
Yes, OSHA requires the use of LOTO devices under standard 1910.147 to control hazardous energy and protect employees.
Q3: How do I choose the right LOTO device?
Consider the type of energy source, equipment, and the number of workers involved. Match the LOTO device to the specific application for maximum safety.
Q4: Can one LOTO device be used for all equipment?
No, different types of equipment require specific LOTO devices such as valve lockouts, circuit breaker locks, or cable lockouts.
Q5: What is the difference between lockout and tagout?
Lockout involves physically locking the energy source, while tagout uses a warning tag. OSHA prefers lockout over tagout unless locking is not possible.
Q6: How often should LOTO devices be inspected?
Regular inspections should be conducted at least annually, but more frequent checks may be necessary depending on the environment and usage.
Q7: What happens if a tagout device is removed without authorization?
Unauthorized removal is a serious OSHA violation and could result in penalties or injury. Only the person who applied the tag should remove it.
Q8: Can LOTO devices be reused?
Yes, most LOTO devices are reusable, but they must be inspected for wear and tear before each use to ensure effectiveness.
