In industrial settings where safety is paramount, valve lockout procedures represent a critical component of hazard prevention protocols. Valve lockout is a safety procedure designed to prevent unauthorized operation of valves during maintenance, repairs, or other interventions, ensuring that dangerous materials remain contained and equipment stays in a safe, de-energized state.
According to the Occupational Safety and Health Administration (OSHA), improper isolation of hazardous energy sources, including those controlled by valves, contributes to approximately 120 fatalities and 50,000 injuries annually in U.S. workplaces. These sobering statistics highlight why understanding and implementing proper valve lockout procedures is essential for workplace safety.
Valve lockout is a systematic safety procedure that physically prevents valves from being operated during maintenance, cleaning, or repair work. This process involves placing a specifically designed lockout device on a valve and securing it with a padlock to ensure the valve remains in a safe position. The fundamental purpose is to prevent the unexpected release of hazardous energy or materials that could harm workers.
The concept of valve lockout forms a key component of broader Lockout/Tagout (LOTO) procedures, which OSHA mandates under standard 1910.147 for the control of hazardous energy. While electrical lockout often receives more attention, valve lockout is equally critical in environments where pressurized systems, fluid flow, or hazardous materials pose significant risks.
Implementing effective valve lockout requires understanding three key components:
The type of valve being secured - Different valve designs require specific lockout devices
The safe position - Determining whether the valve should be locked open or closed
The appropriate lockout device - Selecting the correct device to physically prevent valve operation
Industrial facilities typically handle various valve types, including ball valves, gate valves, butterfly valves, plug valves, and globe valves. Each requires a specific approach to lockout, making proper device selection crucial for safety program effectiveness.
The market offers numerous specialized lockout devices, each designed for specific valve types and configurations. Understanding these options helps safety professionals implement comprehensive valve safety programs.
Ball valve lockout devices are designed specifically for quarter-turn valves with handles that rotate 90 degrees between open and closed positions. These valves control flow by rotating a perforated ball inside the valve body.
Ball valve lockout devices typically feature:
Clamshell designs that enclose the valve handle
Adjustable mechanisms to fit various handle sizes
Durable, chemical-resistant materials like reinforced nylon or polypropylene
High-visibility colors (usually red or yellow) for easy identification
Modern ball valve lockout devices often accommodate both standard and oversized valve handles, with adjustable features allowing for secure lockout regardless of handle dimensions. Some advanced models can even secure ball valves with unusually shaped handles or in tight spaces where standard devices might not fit.
Gate valve lockout devices secure valves that use a sliding gate or wedge to control flow. These valves typically have handwheels that must be turned multiple times to fully open or close the valve. The lockout devices for gate valves generally feature:
Adjustable mechanisms to fit various handwheel sizes
Blocking arms or covers that prevent handwheel rotation
Lightweight yet durable construction for easy application
Options for both indoor and outdoor applications with UV-resistant materials
The most effective gate valve lockout devices accommodate wheel diameters ranging from 1 inch to over 18 inches, with some universal models offering even greater versatility. Advanced designs now include telescoping arms and collapsible features for easier storage and transport.

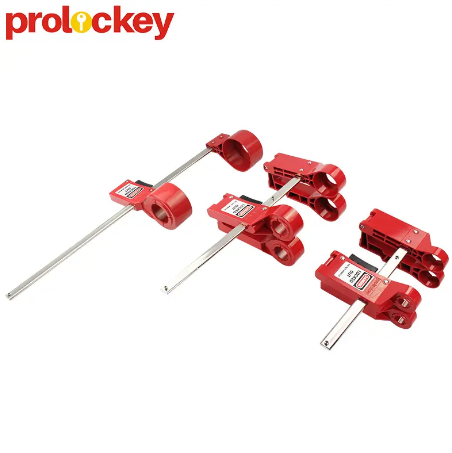

Butterfly valve lockout devices secure valves that use a disk mechanism rotated by a handle or lever. These valves are common in water treatment facilities, HVAC systems, and many industrial applications due to their compact size and quick operation.
Key features include:
Adjustable mechanisms to fit various handle sizes and shapes
Designs that accommodate both lever and handwheel operator types
Secure locking through multiple padlock holes
Weather-resistant materials for outdoor installations
The most versatile butterfly valve lockout devices can secure both the handle/lever type and handwheel-operated butterfly valves, eliminating the need for multiple lockout tools and simplifying safety inventory management.
Universal valve lockout devices offer flexible solutions for securing multiple valve types when specialized devices might not be available or practical. These adaptable tools typically feature:
Adjustable cables or arms that can wrap around various valve components
Multiple locking points for secure application
Versatile design suitable for unusual or non-standard valve configurations
Robust construction for challenging industrial environments
Universal devices have become increasingly popular as facilities seek to streamline their lockout equipment inventory while maintaining comprehensive safety coverage. The latest models incorporate flexible cable systems that can secure virtually any valve type, from small instrument valves to large industrial control valves.
Flange valve lockout devices secure the connection points between piping systems where blind flanges or spectacle blinds might be installed for isolation purposes. These specialized devices:
Block access to flange bolts to prevent unauthorized removal
Accommodate various flange sizes and configurations
Feature corrosion-resistant materials for harsh environments
Provide clear visual indication of lockout status
Flange lockouts play a critical role in chemical processing facilities and refineries, where proper isolation of process systems is essential for preventing exposure to hazardous materials during maintenance activities.
Plug valve lockout devices secure valves that use a cylindrical or conical plug with a passageway to control flow. These specialized lockouts typically feature:
Enclosure designs that prevent plug rotation
Adjustable mechanisms for various plug valve sizes
Durable construction for industrial environments
Clear visibility to verify valve position
Plug valve lockouts have seen significant design improvements in recent years, with new models offering better adjustability and more secure locking mechanisms for this challenging valve type.
The following table provides a detailed comparison of the various valve lockout devices to help safety professionals select the appropriate tools for their specific applications:
| Lockout Type | Best For | Size Range | Material | Special Features | Installation Complexity |
|---|---|---|---|---|---|
| Ball Valve Lockout | Quarter-turn valves with lever handles | Handles from 0.5" to 8" width | Reinforced nylon, polypropylene | Handle enclosure, multiple padlock capacity | Low |
| Gate Valve Lockout | Rising stem valves with handwheels | Wheels from 1" to 18"+ diameter | Aluminum, steel, reinforced plastic | Adjustable diameter, collapsible designs | Medium |
| Butterfly Valve Lockout | Disk valves with lever or handwheel operators | Handles from 2" to 10" | High-impact plastic, steel components | Versatile handle accommodation | Low |
| Universal Valve Lockout | Multiple valve types, unusual configurations | Virtually unlimited with cable systems | Cable core with vinyl coating, steel components | Extreme versatility, cable length options | Medium |
| Flange Valve Lockout | Pipe connection points, blind flanges | Bolt circles from 2" to 24" | Weather-resistant plastic, stainless hardware | Bolt coverage, weather resistance | High |
| Plug Valve Lockout | Cylindrical/conical plug valves | Plugs from 1" to 12" diameter | Reinforced composites | Rotation prevention, position verification | Medium-High |
This comparison highlights how each lockout type serves specific valve configurations and safety requirements. The diversity of available devices ensures that virtually any valve in an industrial environment can be properly secured during maintenance operations.
A systematic approach to valve lockout implementation ensures consistent safety across all maintenance operations. The following five-step process provides a framework for effective valve lockout procedures:
Identification and Preparation
Identify all valves requiring lockout for the specific task
Verify the correct valve lockout devices are available
Notify affected personnel about the planned lockout
Proper Valve Positioning
Move the valve to its safe position (typically closed for supply valves, open for drain valves)
Verify the valve position through system indicators or testing
Document the initial state and intended locked position
Lockout Device Installation
Select the appropriate lockout device for the specific valve type
Install the device according to manufacturer instructions
Ensure the device completely prevents valve operation
Securing with Personal Locks
Apply individual personal locks to the lockout device
Each worker involved in the maintenance must apply their own lock
Verify the valve cannot be operated once locked
Testing and Verification
Attempt to operate the valve to confirm the lockout is effective
Verify zero energy state in the system being maintained
Document the lockout with appropriate tags and permits
According to a study by the Liberty Mutual Research Institute for Safety, implementing proper lockout procedures, including valve lockout, can reduce workplace accidents by up to 30% in facilities that handle hazardous materials or pressurized systems.
For complex systems requiring multiple valve lockouts, the procedure should include detailed documentation of each lockout point, preferably with diagrams and checklists to ensure complete isolation. Advanced facilities often incorporate digital tracking systems to monitor lockout status and compliance.
Choosing appropriate valve lockout devices requires careful consideration of several factors. Safety managers should evaluate:
Begin by conducting a comprehensive inventory of all valves in your facility, categorizing them by:
Valve type (ball, gate, butterfly, plug, etc.)
Size dimensions (handle width, handwheel diameter)
Location and environment (indoor, outdoor, corrosive, high-temperature)
Function and system (criticality, hazard level)
This assessment forms the foundation for selecting appropriate lockout devices and determining required quantities.
The operating environment significantly influences material selection:
Chemical exposure requires chemical-resistant composites
Outdoor installations need UV-stabilized materials
High-temperature applications demand thermally stable components
Corrosive environments might require stainless steel components
Quality valve lockout devices from reputable manufacturers like Prolockey typically offer specifications regarding their material composition and environmental resistance.
Safety managers must balance versatility against specialized functionality:
Universal devices provide flexibility but may not offer optimal security for every valve type
Specialized devices provide perfect fits for specific valves but increase inventory requirements
Hybrid approaches might include a core set of specialized devices supplemented with universal options
The most efficient approach often involves standardizing on specific device models that cover the majority of valve types in the facility, with specialized devices for critical or unique applications.
Consider how valve lockout devices will integrate with:
Existing lockout tagout programs and procedures
Training programs and competency verification
Audit and compliance verification processes
Emergency response protocols
Seamless integration requires selecting devices that align with established practices while meeting all technical requirements.
Different industries face unique challenges when implementing valve lockout procedures, requiring tailored approaches to address specific risks and operational constraints.
Chemical facilities handle a diverse range of hazardous materials, making valve lockout particularly critical. These facilities typically require:
Chemical-resistant lockout devices
Comprehensive valve identification systems
Specialized procedures for reactive material systems
Integration with process safety management systems
A industry survey found that chemical plants with robust valve lockout programs experienced 45% fewer hazardous material incidents compared to facilities with basic compliance-only approaches.
The oil and gas sector deals with flammable materials under high pressure, necessitating:
Explosion-proof lockout devices where appropriate
High-temperature rated components
Specialized solutions for large pipeline valves
Remote lockout capabilities for difficult-to-access valves
Major oil companies report that implementing comprehensive valve lockout programs has contributed to a 55% reduction in maintenance-related incidents over the past decade.
Pharmaceutical operations must maintain strict contamination control while addressing safety:
Stainless steel or cleanroom-compatible lockout devices
Integration with validation and documentation requirements
Specialized procedures for sterile processing areas
Risk assessment for product impact
The pharmaceutical industry's focus on Current Good Manufacturing Practices (cGMP) adds complexity to valve lockout procedures, requiring careful integration with quality systems.
These facilities manage large-diameter valves and potentially hazardous treatment chemicals:
Weatherproof lockout devices for outdoor installations
Corrosion-resistant materials for harsh environments
Specialized devices for large butterfly and gate valves
Integrated procedures for multiple-valve systems
Water utilities implementing comprehensive valve lockout programs report significant improvements in both worker safety and regulatory compliance metrics.
Understanding the regulatory framework surrounding valve lockout helps organizations develop compliant programs that meet or exceed safety standards.
OSHA standard 1910.147 (The Control of Hazardous Energy) establishes the baseline requirements for lockout/tagout programs, including valve lockout. Key provisions include:
Developing documented energy control procedures
Providing appropriate lockout devices and hardware
Conducting periodic inspections of procedures
Training authorized and affected employees
Implementing specific procedures for group lockouts
OSHA statistics indicate that citations related to inadequate lockout/tagout procedures result in some of the highest penalty amounts, averaging over $7,500 per violation, with some significant cases exceeding $100,000.
Beyond OSHA requirements, several industry standards provide guidance for valve lockout:
ANSI/ASSE Z244.1: American National Standard for The Control of Hazardous Energy
API RP 2D: Recommended Practice for Operation and Maintenance of Offshore Cranes (includes valve lockout for hydraulic systems)
NFPA 70E: Standard for Electrical Safety in the Workplace (includes provisions for electrical and mechanical energy isolation)
These standards offer more detailed guidance than OSHA regulations alone and represent industry best practices for comprehensive hazardous energy control.
For multinational operations, compliance with international standards is also important:
ISO 14118: Safety of machinery - Prevention of unexpected start-up
EU Directive 2009/104/EC: Use of work equipment
UK's Provision and Use of Work Equipment Regulations (PUWER)
Global harmonization of safety standards has led to increasing similarity in valve lockout requirements across international boundaries, though specific implementation details may vary by jurisdiction.
The following case study demonstrates the critical importance of proper valve lockout procedures in preventing industrial accidents:
A chemical manufacturing facility in the Midwest was performing maintenance on a reactor system containing volatile organic compounds. The maintenance required opening several access points to clean internal components.
During the maintenance operation, a contractor needed to access an adjacent system and inadvertently opened a cross-connection valve that had not been properly locked out. This valve would have allowed hazardous material to flow into the reactor being serviced, potentially exposing workers to toxic chemicals and creating an explosion risk.
Fortunately, the facility had recently upgraded its valve lockout program with comprehensive valve lockout devices from Prolockey. A vigilant supervisor noticed the missing lockout during a routine check of the isolation points and immediately secured the valve before any material transfer occurred.
Safety engineers at the facility conducted a post-incident analysis and determined that proper implementation of their upgraded valve lockout program prevented:
Potential exposure of 12 maintenance workers to toxic chemicals
An estimated $3.5 million in equipment damage
Production downtime valued at approximately $250,000 per day
Potential regulatory penalties exceeding $100,000
Following this near-miss, the facility implemented several improvements:
Enhanced valve mapping and identification in all process systems
Implementation of electronic lockout verification systems
Additional training focused specifically on valve lockout procedures
Upgraded lockout devices for all critical valves
This case highlights how proper valve lockout procedures and devices serve as a critical last line of defense against potentially catastrophic industrial accidents.
The field of valve safety continues to evolve with innovative approaches to lockout technology. Several emerging trends are reshaping how facilities approach valve lockout:
Advanced lockout systems now incorporate digital technologies:
RFID-equipped lockout devices that track who applied locks and when
Mobile applications for lockout procedure documentation and verification
QR code integration for immediate access to valve-specific lockout instructions
Electronic authorization systems for lockout implementation and removal
These smart systems enhance compliance tracking while streamlining the documentation process, particularly valuable for facilities with complex lockout requirements.
New materials are improving lockout device performance:
Composite materials that offer superior strength-to-weight ratios
Enhanced chemical resistance for aggressive industrial environments
Improved UV stability for outdoor applications
Anti-static formulations for hazardous locations
These material advances result in lockout devices with longer service lives and improved performance in challenging industrial conditions.
Modern valve lockout programs increasingly incorporate visual management principles:
Color-coded lockout devices aligned with system identification
Clear visual indicators of lockout status
Integration with digital twin technology for virtual verification
Augmented reality guidance for complex lockout procedures
Visual management techniques improve compliance while reducing the cognitive load on workers implementing lockout procedures.
Q1: What is the difference between valve lockout and valve tagout?
A1: Valve lockout physically prevents valve operation using a mechanical device secured with a padlock, while valve tagout only involves attaching a warning tag without physical restraint. OSHA regulations generally require lockout when physically possible, with tagout alone permitted only when lockout isn't feasible.
Q2: How do I know which valve lockout device is appropriate for my specific valves?
A2: Select lockout devices based on valve type (ball, gate, butterfly, etc.), size dimensions, operating environment, and material compatibility. Most manufacturers provide sizing guides and selection tools to help identify the appropriate device for specific valve configurations.
Q3: Can multiple workers lock out the same valve simultaneously?

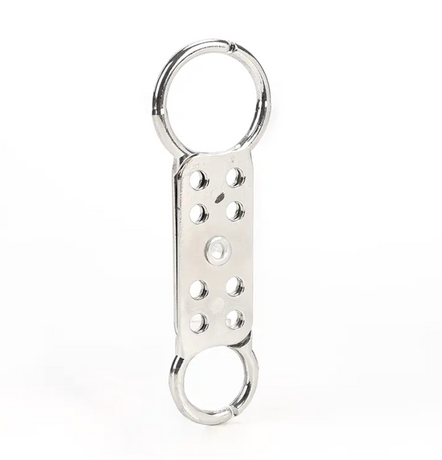

A3: Yes, proper valve lockout devices include multiple padlock holes or hasp attachments that allow several workers to apply their individual locks to the same valve. This group lockout capability ensures each worker maintains personal control over their safety during maintenance operations.
Q4: What are the OSHA requirements specifically for valve lockout?
A4: OSHA standard 1910.147 requires that energy control procedures include specific steps for shutting down equipment, isolating energy sources (including valves), applying lockout devices, verifying isolation, and safely restoring energy. The standard requires that lockout devices be durable, standardized, substantial, and identifiable.
Q5: How often should valve lockout devices be inspected and replaced?
A5: Inspect valve lockout devices before each use for damage or wear. Additionally, conduct formal inspections at least annually as part of your overall lockout program audit. Replace devices showing signs of damage, cracking, fading, or reduced functionality. Most quality devices have an expected service life of 3-5 years under normal conditions.
Q6: Are there special considerations for valve lockout in extreme environments?
A6: Extreme environments require specialized lockout devices. For high-temperature areas, select devices rated for elevated temperatures. In corrosive environments, use chemical-resistant materials like certain engineered polymers or stainless steel. For outdoor or wet locations, choose UV-stabilized and weatherproof devices designed for environmental exposure.
Q7: How do valve lockout requirements differ across industries?
A7: While basic principles remain consistent, implementation varies by industry. Chemical processing requires chemical-resistant devices and procedures for hazardous materials. Food processing demands sanitary materials and considerations for product contamination. Oil and gas operations need explosion-proof options and solutions for large-diameter valves. Healthcare facilities must balance infection control with safety requirements.
Implementing effective valve lockout procedures represents a critical component of industrial safety management. By following these best practices, organizations can develop robust programs that protect workers while ensuring regulatory compliance:
Conduct comprehensive valve assessments: Document all valves requiring lockout, categorizing them by type, size, location, and function to inform device selection and procedure development.
Select appropriate lockout devices: Choose quality devices specifically designed for your valve types and operating environments, ensuring complete mechanical blocking of valve operation.
Develop detailed procedures: Create valve-specific lockout procedures that identify exact lockout points, required devices, and verification steps for each maintenance scenario.
Implement effective training: Provide hands-on training for all personnel involved in valve lockout, ensuring they understand both the technical aspects and the safety implications.
Verify through testing: Always test locked valves by attempting operation after lockout to confirm the effectiveness of the isolation.
Document comprehensively: Maintain detailed records of lockout procedures, training, inspections, and incidents to support continuous improvement.
Review and improve: Regularly audit valve lockout practices, incorporating lessons learned from near-misses, technological advances, and evolving best practices.
The investment in quality valve lockout equipment and procedures yields significant returns in worker safety, regulatory compliance, and operational efficiency. By understanding the unique requirements of different valve types and implementing appropriate lockout solutions from trusted suppliers like Prolockey, organizations can prevent accidents, protect workers, and maintain safe operational environments.
As industrial systems grow increasingly complex and regulatory scrutiny intensifies, maintaining effective valve lockout programs becomes not just a compliance requirement but a fundamental aspect of operational excellence. Organizations that prioritize valve safety through comprehensive lockout programs demonstrate their commitment to worker protection while simultaneously enhancing operational reliability and sustainability.
