In industrial environments where electrical hazards pose significant risks to worker safety, proper insulation of lockout equipment is not just a precaution—it's a necessity. An Insulation Shackle Padlock is a specialized safety device designed with non-conductive components to prevent electrical current from passing through the lock body and shackle, protecting workers during maintenance and repair operations on electrical equipment. This comprehensive guide explores everything you need to know about these critical safety tools, from their fundamental design principles to selection guidelines and best practices for implementation.
Insulation Shackle Padlocks are specialized lockout devices featuring non-conductive materials in their construction, particularly in the shackle area. Unlike standard metal padlocks, these safety devices are engineered specifically to prevent electrical conductivity, making them essential components in comprehensive lockout/tagout (LOTO) programs in environments with electrical hazards.
According to the Occupational Safety and Health Administration (OSHA), electrocutions remain one of the "Fatal Four" leading causes of workplace fatalities in the construction industry, accounting for 8.5% of construction worker deaths. Proper implementation of electrical safety protocols, including the use of insulated lockout equipment, could prevent approximately 166 worker deaths annually in the United States alone.
The critical importance of these specialized padlocks becomes clear when considering that a standard metal padlock can become a deadly conductor in high-voltage environments. Electrical current can travel through a metal shackle directly to the worker's hand, potentially causing severe injury or death. Insulation Shackle Padlocks eliminate this risk through strategic use of non-conductive materials.
The fundamental principle behind Insulation Shackle Padlocks lies in their innovative construction using dielectric materials—substances that do not conduct electrical current. These padlocks typically feature:
Non-conductive shackles: Usually made from reinforced nylon, fiberglass-reinforced nylon, or specially coated materials that prevent electrical conductivity while maintaining structural strength.
Insulated lock bodies: Often constructed from durable composite polymers or insulated metal components that provide electrical isolation.
Key cylinders isolated from external components: Ensuring that even if the key is metal, it cannot create a conductive path through the lock.
The engineering behind these padlocks focuses on maintaining high dielectric strength—the maximum electric field a material can withstand without breaking down. Quality Insulation Shackle Padlocks are tested to withstand specific voltage levels, often 1000V or higher, depending on their rating and intended application.
Understanding the differences between insulated and standard padlocks is essential for workplace safety in electrical environments. These differences extend beyond mere materials to encompass design philosophy, safety standards, and application contexts.
| Feature | Standard Metal Padlocks | Insulation Shackle Padlocks |
|---|---|---|
| Shackle Material | Hardened steel or brass | Non-conductive nylon, composite materials |
| Electrical Conductivity | Highly conductive | Non-conductive (typically rated for 1000V+) |
| Safety Standards Compliance | Basic security standards | Meets electrical safety standards (OSHA, NFPA 70E) |
| Visual Identification | Typically metal finish | Bright colors with safety markings |
| Application Context | General security | Electrical lockout procedures |
| Risk in Electrical Environment | Potential shock hazard | Engineered for electrical safety |
| Temperature Resistance | Varies by metal type | Specially formulated for extreme conditions |
| Corrosion Resistance | Dependent on metal type | High resistance to environmental factors |
| Weight | Heavier | Typically lighter |
| Cost | Lower | Higher (specialized safety equipment) |
The safety advantages of Insulation Shackle Padlocks become particularly evident in scenarios involving live electrical testing, where residual energy may be present, or in environments where unexpected re-energization could occur. The National Fire Protection Association (NFPA) reports that approximately 2,000 workers are hospitalized annually with severe electrical burns, many resulting from inadequate lockout procedures or equipment.
The market offers several variations of Insulation Shackle Padlocks, each designed for specific industrial applications and safety requirements. Understanding these different types helps safety professionals select the most appropriate solution for their particular needs.
These feature complete insulation of both the body and shackle, offering maximum protection in high-voltage environments. Typically rated for voltages up to 1000V or higher, these padlocks are essential for electrical substations, power distribution centers, and industrial electrical maintenance.
These padlocks feature non-conductive shackles but may have metal or composite bodies. While still providing essential protection against electrical conduction through the shackle, they may not offer the same level of protection as fully insulated models. These are suitable for moderate-risk electrical environments.
Specially formulated to withstand extreme environmental conditions, these padlocks combine insulation properties with resistance to UV radiation, moisture, chemicals, and temperature fluctuations. These are ideal for outdoor electrical installations, chemical plants, or marine environments.
Insulation Shackle Padlocks are available with various keying options:
Keyed Different: Each padlock opens with its unique key
Keyed Alike: Multiple padlocks open with the same key
Master Keyed: Individual keys plus a master key that opens all locks
Key Retaining: The key cannot be removed while the padlock is open
The selection of the appropriate keying system depends on the organization's lockout protocols and access control requirements.

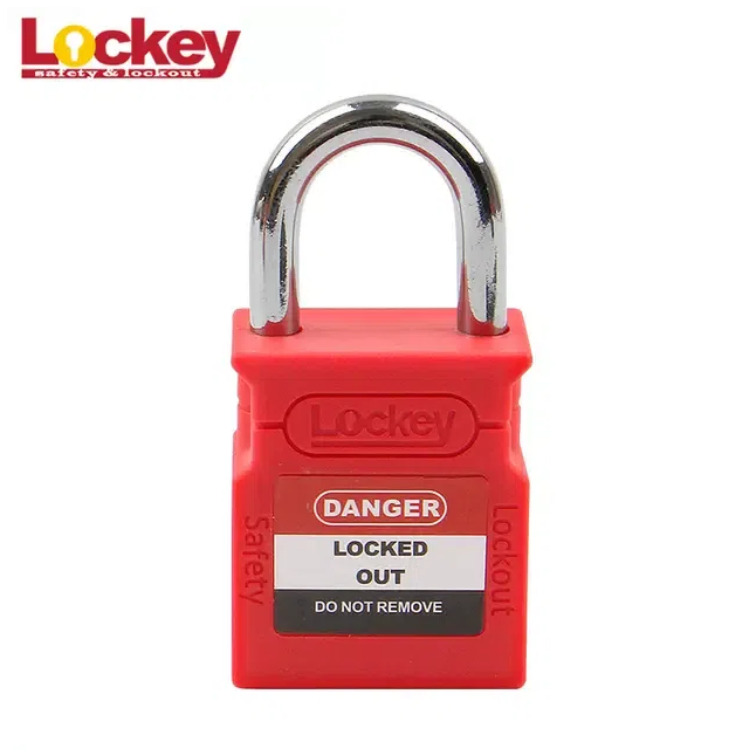

Selecting the appropriate Insulation Shackle Padlock requires careful consideration of several factors. Follow these steps to ensure you choose the right insulated padlock for your specific electrical safety needs:
Assess voltage requirements: Determine the maximum voltage present in your work environment and select padlocks rated for at least 20% higher than this maximum.
Identify environmental conditions: Consider exposure to extreme temperatures, chemicals, moisture, or UV radiation, and select padlocks with appropriate environmental ratings.
Evaluate mechanical requirements: Analyze shackle diameter and length needs based on the equipment to be locked out. Standard shackle diameters range from 4mm to 8mm, while lengths vary from 25mm to 75mm or more.
Consider visibility requirements: Bright colors aid in visual identification of locked-out equipment. Choose colors that align with your organization's color-coding system if applicable.
Determine keying requirements: Decide between keyed-alike, keyed-different, or master-keyed systems based on your lockout program's access control needs.
Verify compliance with standards: Ensure the padlocks meet relevant safety standards including OSHA 1910.147, NFPA 70E, and industry-specific requirements.
Check durability specifications: Review cycle testing data and warranty information to assess long-term reliability.
Evaluate additional features: Consider whether you need features like dust covers, weather protection, or identification options such as write-on labels or engraving.
When properly selected, Insulation Shackle Padlocks from reputable manufacturers like Prolockey provide reliable protection in electrical lockout scenarios, significantly reducing workplace hazards.
Insulation Shackle Padlocks must comply with several regulatory standards and industry guidelines to ensure worker safety. Understanding these standards helps organizations maintain compliance while implementing effective lockout programs.
The Occupational Safety and Health Administration's standard 1910.147 (The Control of Hazardous Energy) requires that lockout devices be:
Durable to withstand the environment
Standardized within the facility
Substantial enough to prevent removal
Identifiable to the employee who applied them
For electrical work specifically, OSHA 1910.333 addresses electrical safety-related work practices, including the use of appropriate insulated tools and equipment.
The National Fire Protection Association's NFPA 70E (Standard for Electrical Safety in the Workplace) provides detailed requirements for safe work practices in electrical environments. It specifies that lockout devices used for electrical work must be:
Non-conductive
Designed to withstand the environment
Capable of withstanding the maximum prospective fault current
ASTM F3029 provides the standard specification for determining the dielectric strength of insulating equipment. Quality Insulation Shackle Padlocks should be tested according to this standard to verify their insulation properties.
IEC 60204 addresses safety of machinery with electrical components, including requirements for lockout equipment used in electrical applications.
Compliance with these standards is not merely a regulatory requirement—it's a fundamental aspect of workplace safety. The Bureau of Labor Statistics reports that companies with effective safety programs, including proper implementation of insulated lockout equipment, experience 60% fewer workplace injuries and illnesses compared to companies without such programs.
To maintain the integrity and safety features of Insulation Shackle Padlocks, proper usage and regular maintenance are essential. Following these guidelines ensures continued protection for workers engaging in electrical lockout procedures.
Visual inspection before each use: Check for cracks, chips, or damage to the insulation material. Any compromise in the insulation integrity renders the padlock unsafe for electrical applications.
Correct application: Apply the padlock directly to the energy isolation device, ensuring the shackle fully engages the lockout point.
Single-worker, single-lock principle: Each worker involved in maintenance should apply their personal padlock to the energy control point or group lockout device.
Verification of zero-energy state: After applying the lockout, verify that the equipment is properly de-energized before beginning work.
Proper removal procedure: Only the worker who applied the padlock should remove it, and only after work is completed and all tools and guards are restored.
Regular cleaning: Clean padlocks using only manufacturer-approved cleaning agents. Avoid harsh chemicals that might degrade the insulation properties.
Lubrication: Use only dielectric lubricants specifically recommended by the manufacturer for the lock cylinder.
Environmental storage: Store padlocks in clean, dry locations away from extreme temperatures, UV exposure, or chemical contaminants.
Periodic testing: For critical applications, consider periodic dielectric testing to verify that insulation properties remain intact.
Replacement schedule: Establish a replacement schedule based on usage frequency, environmental conditions, and manufacturer recommendations.
Documentation: Maintain records of inspections, maintenance, and replacement for compliance and safety audit purposes.
According to a study by the Institute of Electrical and Electronics Engineers (IEEE), proper maintenance of electrical safety equipment, including Insulation Shackle Padlocks, can extend their effective service life by up to 40% while ensuring consistent performance throughout their use.
The following case study illustrates the critical importance of Insulation Shackle Padlocks in industrial safety applications.
A large petroleum refinery was conducting scheduled maintenance on a 480V electrical distribution panel that powered several critical pumps and control systems. The maintenance team implemented a lockout/tagout procedure using standard lockout equipment.
During the maintenance procedure, an unexpected ground fault occurred in an adjacent system, energizing part of the supposedly isolated panel. A maintenance technician was using a standard metal padlock for lockout, which became energized. Fortunately, the supervisor had recently updated the facility's lockout equipment to include Insulation Shackle Padlocks from Prolockey replacing the technician's metal padlock with an insulated one just minutes before the fault occurred.
When the ground fault occurred, the Insulation Shackle Padlock prevented electrical current from reaching the technician. The insulated shackle successfully blocked the current path, preventing what could have been a severe electrical injury or fatality. The facility's safety team estimated that the padlock's insulation properties prevented an incident that could have resulted in:
A potential fatality
Facility downtime estimated at 3-5 days
Regulatory penalties exceeding $100,000
Workers' compensation claims and increased insurance premiums
Following this near-miss incident, the facility implemented a comprehensive review of all lockout equipment and procedures, resulting in:
Complete replacement of all metal padlocks with Insulation Shackle Padlocks for electrical applications
Enhanced training on electrical hazards and proper lockout equipment selection
Implementation of regular dielectric testing for all insulated safety equipment
Development of more comprehensive pre-maintenance hazard assessments
This case demonstrates how a relatively small investment in proper Insulation Shackle Padlocks can prevent potentially catastrophic incidents, saving lives and avoiding significant financial impacts.
Not all insulated padlocks offer the same level of protection. Here are key features to look for when evaluating the quality of Insulation Shackle Padlocks:
Clear voltage ratings: Quality padlocks clearly state their voltage rating, typically 1000V or higher for electrical applications.
Certification markings: Look for markings indicating compliance with relevant standards such as ASTM F3029 or IEC 60204.
Material quality: High-quality non-conductive materials should feel substantial and durable, not brittle or fragile.
Consistent coloration: The colored components should have uniform coloration without fading, streaking, or discoloration that might indicate inferior materials.
Precision manufacturing: Examine the fit between components—quality padlocks exhibit precise tolerances with minimal gaps or misalignment.
Smooth operation: The key mechanism should operate smoothly without catching or requiring excessive force.
Clear identification features: Look for provisions for worker identification such as write-on labels, engraving possibilities, or ID tag systems.
Secure key retention: For safety applications, many quality padlocks feature key retention systems that prevent key removal while the padlock is open.
Comprehensive documentation: Quality manufacturers provide detailed specifications, testing certifications, and clear usage instructions.
Traceable manufacturing: Higher-quality padlocks often include batch codes or serial numbers for quality control and traceability.
Q1: What is the difference between an insulation shackle padlock and a standard safety padlock?
A1: An Insulation Shackle Padlock features non-conductive materials (typically reinforced nylon) in the shackle and often in the body, preventing electrical current transmission. Standard safety padlocks typically use metal shackles that can conduct electricity, creating potential hazards in electrical applications. The insulated versions are specifically designed for use in electrical lockout scenarios where contact with live circuits is possible.
Q2: How do I know if an insulation shackle padlock provides adequate protection for my application?
A2: Check the voltage rating of the padlock (typically stamped on the lock or included in documentation) and ensure it exceeds the maximum potential voltage in your application by at least 20%. Verify that the padlock meets relevant safety standards such as ASTM F3029 or IEC 60204. Finally, inspect the padlock for any damage to the insulation that might compromise its dielectric properties.
Q3: Can insulation shackle padlocks be used outdoors or in harsh environments?
A3: Many Insulation Shackle Padlocks are designed for industrial environments and can withstand outdoor conditions. Look for padlocks specifically rated for UV resistance, wide temperature ranges (-40°F to 185°F), and moisture/chemical resistance. Some manufacturers offer special weather-resistant models with additional seals and protective features for extreme environments.
Q4: What are the key technical specifications I should look for when selecting an insulation shackle padlock?
A4: Key specifications include: voltage rating (typically 1000V or higher), shackle diameter (usually 4-8mm), shackle clearance (height and width), key type and keying options (keyed alike, keyed different, master keyed), temperature rating, and compliance with relevant safety standards. Also consider special features like key retention, weatherproof covers, or identification options.
Q5: How often should insulation shackle padlocks be replaced?
A5: The replacement frequency depends on usage conditions and manufacturer recommendations. Generally, Insulation Shackle Padlocks should be visually inspected before each use and replaced immediately if any damage to the insulation is observed. For heavily used padlocks in harsh environments, consider scheduled replacement every 3-5 years. Some organizations also implement periodic dielectric testing to verify insulation integrity.
Q6: Can multiple workers use the same insulation shackle padlock in a group lockout scenario?
A6: No. Safety best practices and OSHA regulations require each authorized worker to apply their personal lockout device. For group lockout scenarios, use multiple Insulation Shackle Padlocks with a lockout hasp or group lockout box. This ensures that equipment cannot be re-energized until all workers have completed their tasks and removed their individual locks.
Q7: Are there color-coding standards for insulation shackle padlocks?
A7: While there are no universal color-coding requirements for Insulation Shackle Padlocks, many organizations implement their own color systems to identify departments, individual workers, or specific applications. Common practices include assigning different colors to different shifts, maintenance teams, or contractor groups. The most important factor is that the color-coding system is consistently applied and clearly communicated throughout the organization.
Implementing Insulation Shackle Padlocks in your electrical safety program represents a critical investment in worker protection and regulatory compliance. To maximize the effectiveness of these essential safety tools, consider these best practices:
Integrate padlocks into a comprehensive safety program: Insulation Shackle Padlocks should be part of a broader electrical safety and lockout/tagout program that includes training, procedures, and regular audits.
Standardize padlock selection: Establish standardized specifications for Insulation Shackle Padlocks throughout your facility to ensure consistent protection levels.
Implement clear identification systems: Utilize color-coding, engraving, or other identification methods to clearly associate each padlock with a specific worker.
Establish robust inspection protocols: Develop and enforce regular inspection procedures to identify damaged or compromised padlocks before they create safety risks.
Provide thorough training: Ensure all workers understand the importance of using properly insulated padlocks for electrical applications and can identify signs of damage or wear.
Document your program: Maintain detailed records of padlock assignments, inspections, and replacements to demonstrate due diligence in safety compliance.
Regularly review and update: Periodically review your electrical lockout procedures and equipment to incorporate new technologies, standards changes, or lessons learned from incidents.
By implementing these best practices and investing in quality Insulation Shackle Padlocks from reputable manufacturers like Prolockey, organizations can significantly reduce electrical safety risks, protect workers from potentially fatal hazards, and maintain compliance with increasingly stringent safety regulations.
The relatively small investment in proper insulated lockout equipment yields immeasurable returns in worker safety, operational continuity, and corporate responsibility. When it comes to electrical safety, cutting corners on equipment quality is never worth the potential cost in human lives and organizational liability.
